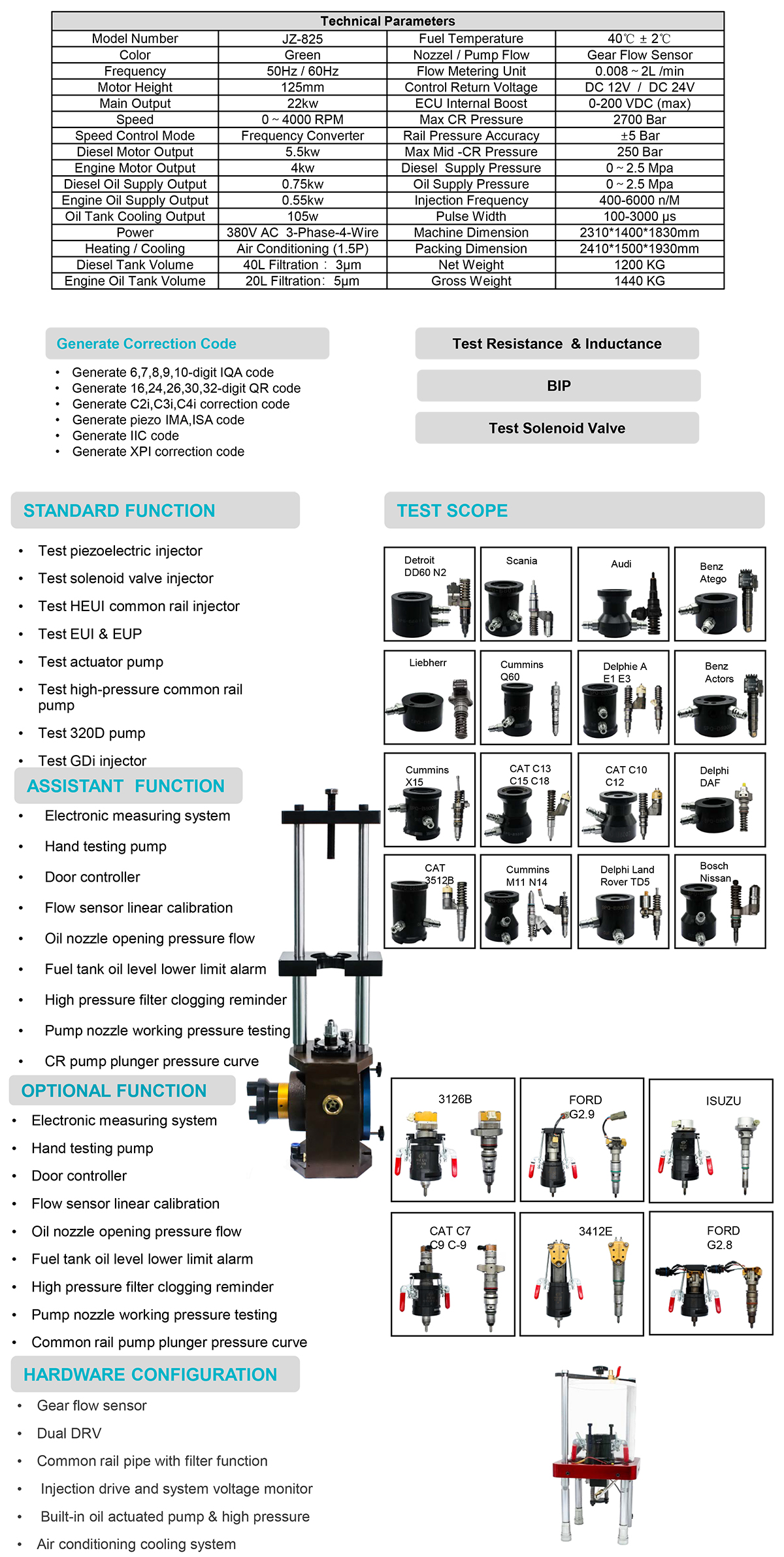

JZ-825 multi-function test bench
Published in:2019-09-29 16:31:40









Electronic measuring system

Fully function fully automatic

Integrated flow sensor

Data precision multiple protection

Intelligent algorithm automatic calibration

Automatic coding function

Fuel injection timing response sensing function

Test the resistance and inductance of the injector

Test oil automatic heating / cooling control

Real-time display of fuel injection / oil return curve

Bosch, Denso, Delphi original data

Bosch original CP3 pump and high pressure rail with DRV

Testable solenoid valve type, piezoelectric injector

Can be installed with medium pressure common rail injector kit

It can drive different types of common rail high pressure oil pumps such as Bosch CP1/CP2/CP3, Del CRSP, Denso HP3/HP4, HPO, Siemens DCP pump, etc.

Optional actuation pump kit

Can be installed with single pump, pump nozzle measurement

Can test pump chamber pressure, positive and negative oil pressure

Function debugging under different speed conditions

Dozens of aptamers to test hundreds of part numbers such as Bosch, Cummins, Volvo, Carter, Hengyang, and Wit

Pre-sensor precision filter

Data backup software update cloud upgrade

Chinese, English and other multi-language interface switching




technical parameter
Rated output power22 KW
Spindle speed0 to 4000 rpm
Speed control modeFrequency converter
Power parameterThree-phase four-wire 380V 50/60HZ
Temperature Control SystemAir conditioning cooling
Track pressure0~2600 Bar
Rail pressure test accuracy±5 Bar
Nozzle sensorOriginal imported elliptical flow sensor
Oil pump sensorOriginal imported vane flow sensor
Fuel tank capacity30 liters
Fuel temperature40±2℃
Filtration accuracyLess than 5μm
Overall size2200×1430×1900 mm
net weight1300 kg
